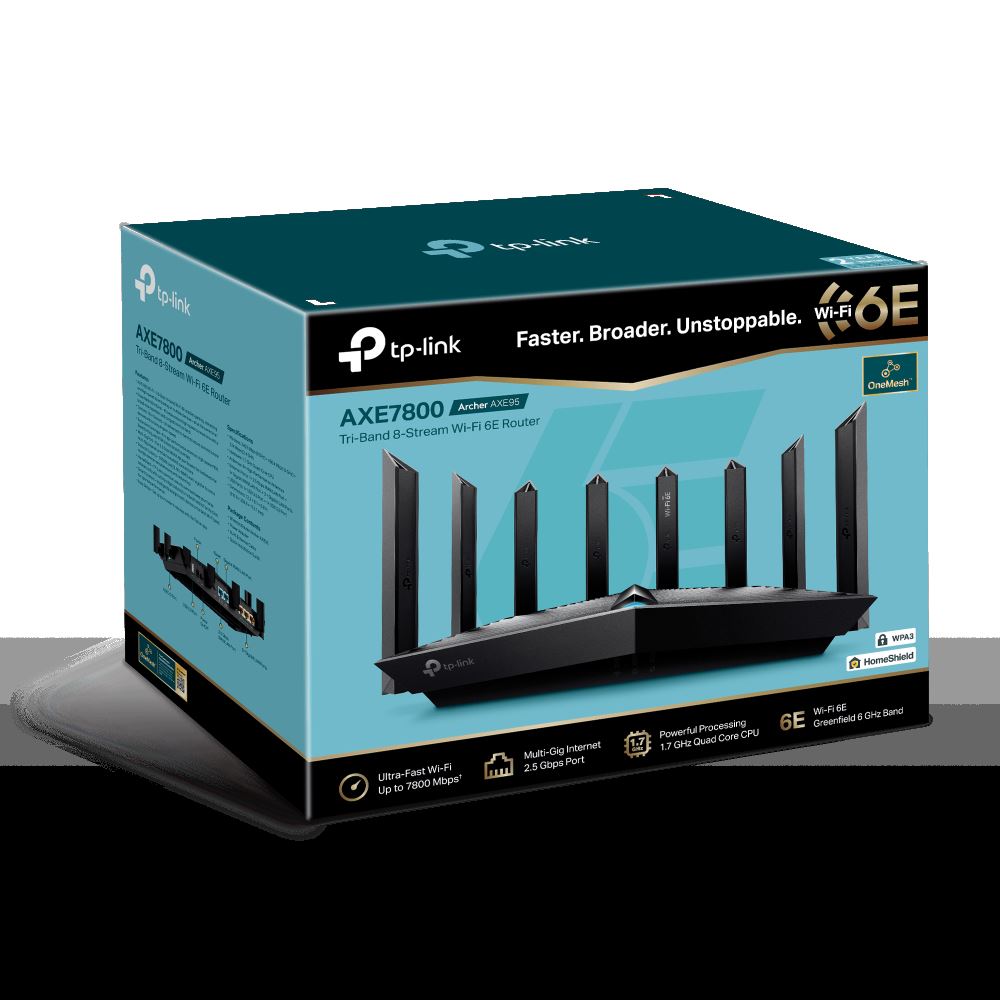

TP-LINK ARCHER-AX95 AX7800 Tri-Band 574 Mbps 2.4 Ghz Wi-Fi 6 Router

WIRELESS
Standards: IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds : AXE7800
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 4802 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range : 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions
and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi
range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in
transmission
WiFi Capacity : Very High
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes : Router Mode
Access Point Mode
HARDWARE
Processor : 1.7 GHz Quad-Core CPU
Ethernet Ports : 1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps WAN/LAN Port
3× 1 Gbps LAN Ports
USB Support : 1× USB 3.0 Port
1× USB 2.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons : Power On/Off Button
Reset Button
Power : 12 V ? 3.3 A
SECURITY
WiFi Encryption : WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)
Network Security : SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network : 1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network
VPN Server : OpenVPN Server
PPTP VPN Server
L2TP VPN Server
VPN Client : Open VPN Client
PPTP VPN Client
L2TP VPN Client
SOFTWARE
Protocols : IPv4
IPv6
Service Kits : HomeShield
Learn More>
OneMesh™ : OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi
ecosystem, OneMesh™ helps you create a more flexible network that covers
your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls : HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types : Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service : QoS by Device
Cloud Service : Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding : Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV : IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP : Address Reservation
DHCP Client List
Server
DDNS : TP-Link
NO-IP
DynDNS
Management : Tether App
Webpage
OTHER
System Requirements : Internet Explorer 11+, Firefox 12.0+, Chrome 20.0
+, Safari 4.0+, or other JavaScript-enabled
browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications : FCC, RoHS
Environment : Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power : FCC: ?29dBm (2.4 GHz), ?28dBm (5 GHz), ?22dBm
(6 GHz)
CE: ?17dBm (2.4 GHz), ?27dBm (5 GHz), ?20dBm (6 GHz)
WiFi Reception Sensitivity : 2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
PHYSICAL
Dimensions (W×D×H) : 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)
Package Contents : Wi-Fi Router Archer AXE95
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
AXE7800 Tri-Band WiFi – 7800 Mbps tri-band WiFi for ultra-fast browsing,
8K streaming, online gaming, and large file downloading, all at the same
time.†
WiFi 6E Unleashed – The brand new 6 GHz band brings more bandwidth,
faster speeds, and near-zero latency.
Ultra Connectivity – 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port +
3× Gigabit LAN ports and two USB ports ensure max flexibility and
boosted throughput.
Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
HomeShield – Customize your home network with enhanced security and
control.*
OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh
Extender for seamless whole-home coverage.
Compatible with Alexa – Control your router via voice commands and make
your life smarter and easier with Amazon Alexa.
Extensive Coverage – 8× antennas and Beamforming ensure broad coverage.
More Vents, Less Heat – Improved vents area unleashes the full power of
the whole machine.

Türü	ROUTER
Standart	IEEE 802.11A,IEEE 802.11AC,IEEE 802.11AX,IEEE 802.11B,IEEE 802.11G,IEEE 802.11N
Data Transfer Hızı	574,0
Radyo Frekansı	2.4 GHZ,5 GHZ,6 GHZ
Güvenlik	WPA,WPA/WPA2,WPA2,WPA3
LAN Port Sayısı	5,0
Anten Sayisi	8
Satış Garanti Süresi (ay)	24
